半導體放電管（DO-214）

.......................................................DO-214 SIDACtor Data........................................................................

The DO-214 SIDACtor is a solid state protection device designed for telecommunications applications such as modems,
line cards, fax machines, etc.
The SIDACtor is used to help equipment meet various regulatory requirements including: GR 1089, ITU K.20 & K.21,
IEC 950, UL 1459 & 1950 and FCC Part68.

Part Number*	VDRM Volts	VS Volts	VT Volts	IDRM µAmps	IS mAmps	IT Amps	IH mAmps	CO PF
P0080S_	6	25	5	5	800	1	50	100
P0300S_	25	40	5	5	800	1	50	110
P0640S_	58	77	5	5	800	1	150	50
P0720S_	65	88	5	5	800	1	150	50
P0900S_	75	98	5	5	800	1	150	50
P1100S_	90	130	5	5	800	1	150	40
P1300S_	120	160	5	5	800	1	150	40
P1500S_	140	180	5	5	800	1	150	40
P1800S_	160	220	5	5	800	1	150	30
P2300S_	190	260	5	5	800	1	150	30
P2600S_	220	300	5	5	800	1	150	30
P3100S_	275	350	5	5	800	1	150	30
P3500S_	320	400	5	5	800	1	150	30

* For individual “SA”, “SB” and “SC” surge ratings, see table below.
Notes:

●All measurements are made at an ambient temperature of 25°C. IPP applies to -40°C through +85°C temperature range.
●IPP is a repetitive surge rating and is guaranteed for the life of the product.

●Listed SIDACtors are bi-directional. All electrical parameters & surge ratings apply to forward and reverse polarities.
●VDRM is measured at IDRM.

●VS is measured at 100V/µs.
●Special voltage (VS & VDRM) and holding current (IH) requirements are available upon request.

●Off-state capacitance is measured at 1MHz with a 2 volt bias and is a typical value for “SA” and “SB” product. “SC”
●capacitance is approximately 2x the listed value.
●The off-state capacitance of the P0080SB is equal to our “SC” device.
Surge Ratings

Series	IPP 2x10µs Amps	IPP 8x20µs Amps	IPP 10x160µs Amps	IPP 10x560µs Amps	IPP 10x1000µs Amps	ITSM 60Hz Amps	dI/dt Amps/µs
A		150	100	50	50	20	500
B		250	150	100		30	500
C	500	400	200		100	60	500

.................................................................................Thermal Considerations.....................................................................................

Package	Symbol	Parameter	Value	Unit
	Tj	Junction Temperature Range	-40 to +150	°C
	Ts	Storage Temperature Range	-65 to +150	°C
DO-214	Tc	Maximum Case Temperature	+75	°C
	Rθjc	Thermal Resistance: junction to case	+28	°C/W
	Rθja	Thermal Resistance: junction to ambient	+90	°C/W

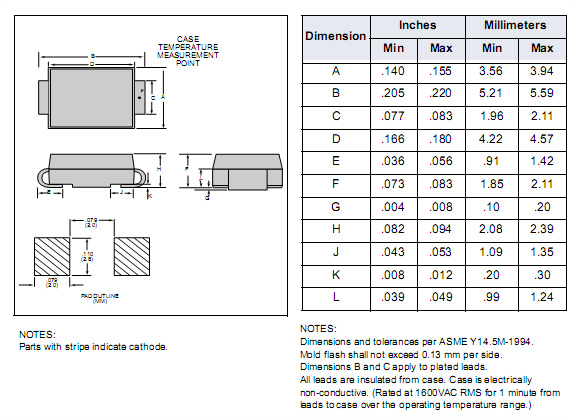

.............................................................Package Dimensions...................................................................

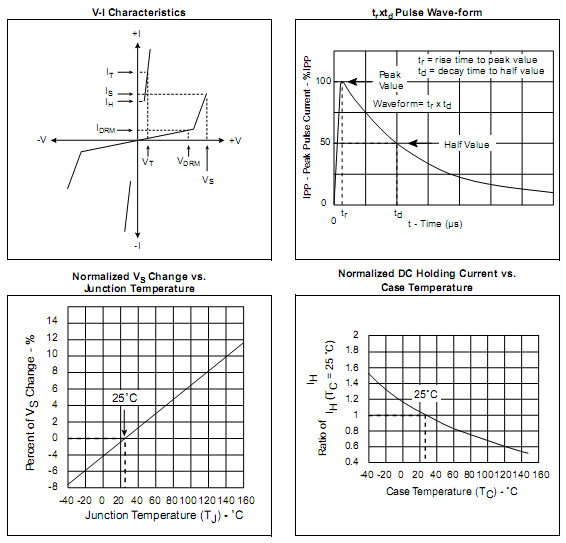

....................................................................... Characteristic Curve.........................................................
